Barton GunWorks

Leading with innovation. Designing for the total firearms system

Barton Gunworks is a UK company that takes pride in designing innovation into everything we manufacture. From our unique, efficient and lightweight rifle moderators to our precisely engineered rails and accessories. We are passionate about improving the total shooting experience; accuracy, noise, balance and handling.

Everything in harmony.

Our gunsmithing services are trusted by some of the world’s leading rifle manufacturers to perform post-production modifications and customisations based on individual or bespoke requirements.

Rifle Moderators, Picatinny Rails and Scope Mounts

As featured on Field Sports Britain

Those lovely chaps at Field Sports Britain have just released this episode featuring our Accurate Foxer Moderator, picatinny rails and NEW rifle scope mounts.

Rifle Moderators

Compact, lightweight, accurate, & efficient

Our rifle moderators are manufactured and assembled in the UK. The unique baffle system attenuates muzzle blast but minimises barrel length. A bushless design reduces the chance of marring the rifle barrel, the rear of the moderator is shaped to reduce glare when using a rifle mounted lamp or night vision system.

The whole system is designed to be efficient and light, perfect for those situations where you wish to keep weight to a minimum. Each of our moderators has been designed to compliment particular calibers and requirements without compromising effectiveness.
Distributed by Edgar Bros. as 'MaccTecc', available in almost all UK gun shops. Standard equipment on packaged rifles from CZ, Zoli, Savage and the Mauser M12 Impact.
• 162mm overall length
• 40mm diameter
• 248 grams (dependent on calibre and thread)
• 100mm in front of muzzle
• Fit barrels up to 24mm diameter

Find your local dealer

Perfect for stalking rifles and larger calibre rifles which require improved moderation but sacrificing a small increase in weight over the Accurate Foxer moderator.
• 182mm overall length
• 40mm diameter
• 275 grams (dependent on calibre and thread)
• 100mm in front of muzzle

Add to Cart

COMING SOON!
Designed for large calibres specifically for long range tactical shooting these are available in .30 cal and .338 (can be supplied with replaceable inserts for multi-calibre use)
• 210mm overall length
• 44mm diameter
• 400 grams (dependent on calibre and thread)
• 140mm in front of muzzle
Price includes FREE shipping to mainland UK RFD
You must provide RFD information at checkout

£340.00Add to basket

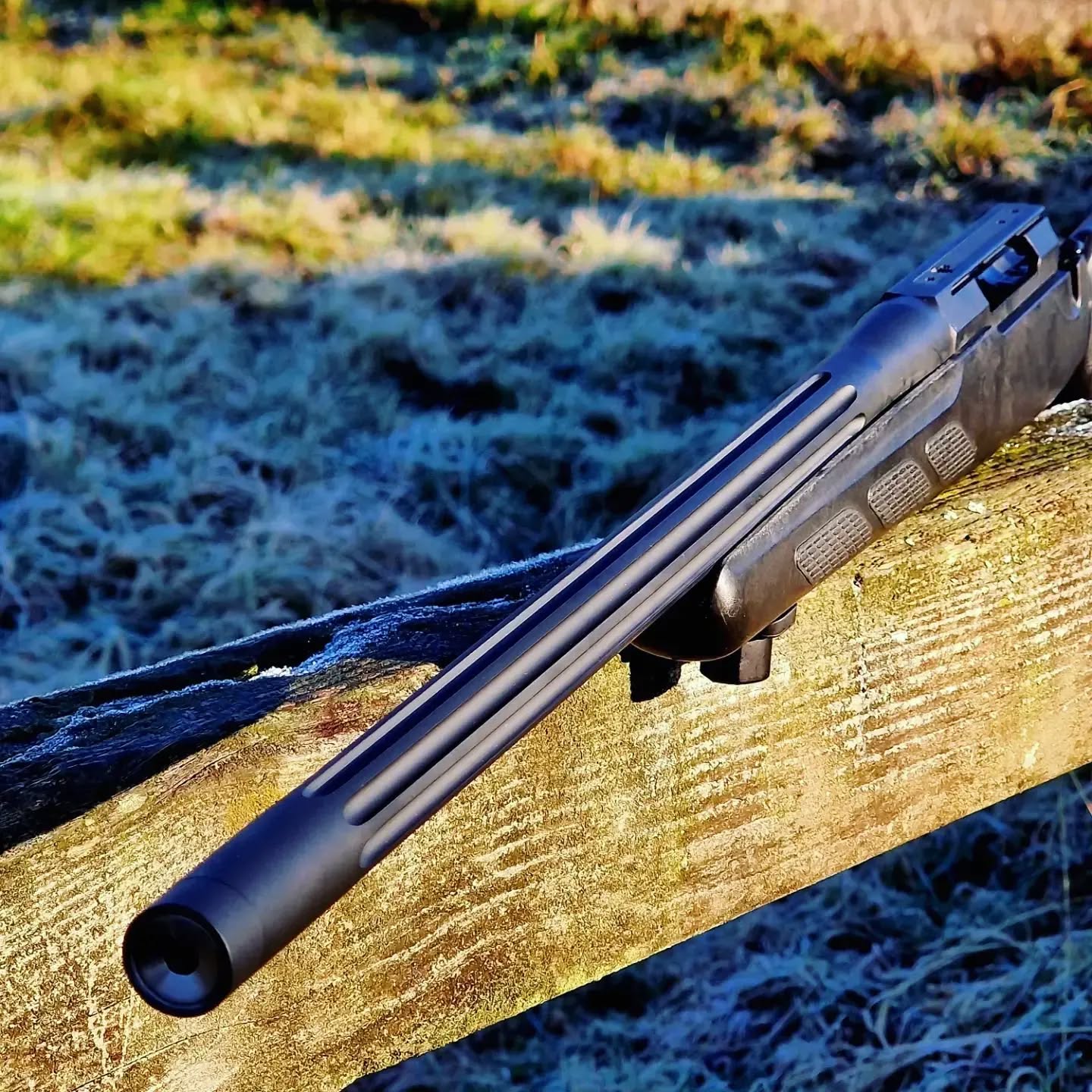

Taking rimfire silencing technology and looks to a new level we introduce the Barton Gunworks overbarrel system. Permanent attachment allows the shortest possible barrel length - but still meeting section 1 requirements.
• Full over barrel system
• 40mm diameter
• Easy maintenance, strip & clean
• Optionally the unit can be made removable

Add to Cart

COMING SOON!

See it in Action

Introducing the new compact rimfire silencer from Barton Gunworks and distributed by Parker Hale. Combining class leading suppression with a low-profile ideally suited to users of rifle mounted lamps, digital or tubed night vision.
• Single piece tube construction
• Exceptional strength to weight ratio
• 40mm diameter
• 248 grams (dependent on calibre and thread)
• 100mm in front of muzzle
• Fit barrels up to 24mm diameter

Find your local dealer

Picatinny Rails

Designed in the UK. Engineered to meet military specifications

Designed for Anschutz, Remington, Savage, Sako & CZ rifles.

Barton GunWorks military-standard Picatinny rails are designed for owners who wish to achieve the most accuracy from their scope and rifle set-up. Our affordably-priced rail is a true MIL-STD-1913 design, extends the length of the action and features an inclined base.

So what’s different about our rails?

Many picatinny rail designs currently on the market are not tight enough and result in the scope moving which can be highly frustrating when zeroing. It’s like putting a very expensive vase on a wobbly table. This new design extends the mounting length, allows easier mounting for the perfect eye relief of longer modern scopes as well as night vision equipment and delivers better use of the elevation turret to shoot at longer distances thanks to the inclined base.

Each Barton Gunworks picatinny rail also features an inclined base at 10MOA (except the 455/452, Sako FinnFire2 & Anschutz bases), allowing for better use of elevation with your scope, but not so inclined that stalking scopes or optics with less adjustment can’t still be zeroed at 100 yards. All our picatinny rails are made in the UK.

The details

Barton GunWorks Picatinny Profile
Barton GunWorks picatinny rails offer the best combination of maximum support and alignment. As you can see from the profile, your scope rings are supported not only on the uppermost edges but from underneath as well, just as the original specifications intended. The means your scope rings must be aligned to the rail on which they are fitted.
Barton GunWorks Picatinny Profile
Most of our competitors rails tend to use this type of profile. With this type of design you have minimal support from the upper surfaces of the rail only. This in turn means that your rings are likely to be slightly out of alignment too. Of course, machining this sort of profile is much simpler and cheaper to achieve.

CZ452 & CZ455 0MOA

Made in the UK using high grade aircraft aluminium, which is specially selected for its rigidity and resilience to ensure accuracy, each rail is anodised with a very high quality satin black finish.
This rail has been designed to fit the CZ455 range of rifles, however, it will also fit the legacy CZ452 range too.
Price includes FREE shipping to mainland UK addresses

CZ527 10MOA

Made in the UK using high grade aircraft aluminium, which is specially selected for its rigidity and resilience to ensure accuracy, each rail is anodised with a very high quality satin black finish.
This CZ Picatinny rail also features an inclined base at 10MOA allowing for better use of elevation with your scope.
Price includes FREE shipping to mainland UK addresses

Sako FinnFire 0MOA

Made in the UK using high grade aircraft aluminium, which is specially selected for its rigidity and resilience to ensure accuracy, each rail is anodised with a very high quality satin black finish.
These Sako Finnfire2 Picatinny rails are set to 0MOA.
Price includes FREE shipping to mainland UK addresses

Tikka T3/T3x 10MOA

Made in the UK using high grade aircraft aluminium, which is specially selected for its rigidity and resilience to ensure accuracy, each rail is anodised with a very high quality satin black finish.
Designed to fit the Tikka T3/T3x perfectly. Extended mount. 10MOA. Full profile Picatinny. Supplied with 4 torx screws and driver.
Price includes FREE shipping to mainland UK addresses

Remington 700 10MOA
Long Action

Made in the UK using high grade aircraft aluminium, which is specially selected for its rigidity and resilience to ensure accuracy, each rail is anodised with a very high quality satin black finish.
Barton Gunworks range of Remington 700 Picatinny rails also feature an inclined base at 10MOA allowing for better use of elevation with your scope.
Price includes FREE shipping to mainland UK addresses

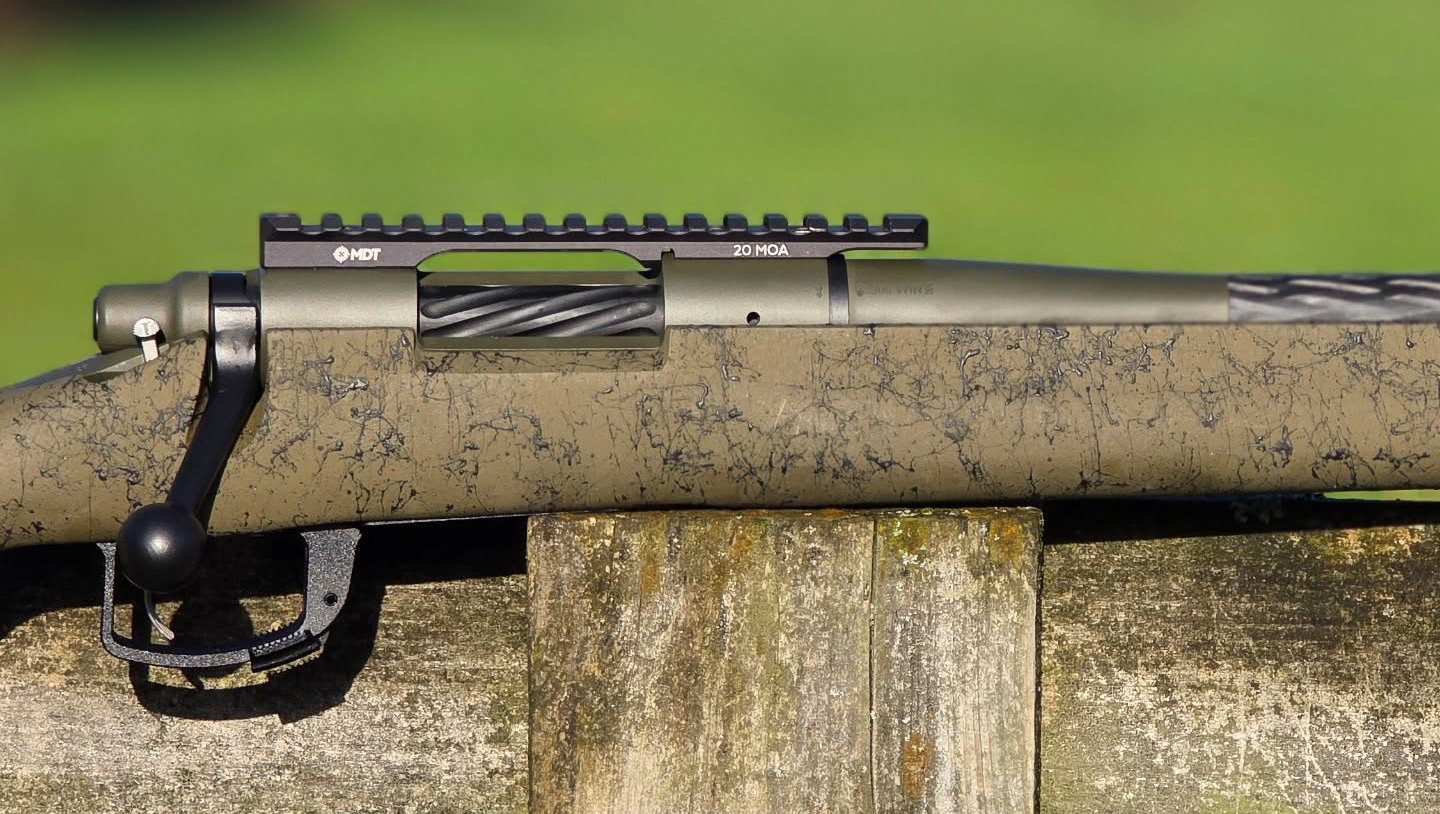

Remington 700 20MOA
Short Action

Made in the UK using high grade aircraft aluminium, which is specially selected for its rigidity and resilience to ensure accuracy, each rail is anodised with a very high quality satin black finish.
Barton Gunworks range of Remington 700 Picatinny rails also feature an inclined base at 20MOA allowing for better use of elevation with your scope.
Price includes FREE shipping to mainland UK addresses

1416-1417, 1516-1517 & Model 64 0MOA

Made in the UK using high grade aircraft aluminium, which is specially selected for its rigidity and resilience to ensure accuracy, each rail is anodised with a very high quality satin black finish.
Price includes FREE shipping to mainland UK addresses

Savage 17WSM 10MOA

Made in the UK using high grade aircraft aluminium, which is specially selected for its rigidity and resilience to ensure accuracy, each rail is anodised with a very high quality satin black finish.
This Savage 17WSM Picatinny rail also features an inclined base at 10MOA allowing for better use of elevation with your scope.
Price includes FREE shipping to mainland UK addresses

Savage Centrefire 10MOA

Made in the UK using high grade aircraft aluminium, which is specially selected for its rigidity and resilience to ensure accuracy, each rail is anodised with a very high quality satin black finish.
Our Savage centrefire Picatinny rail also features an inclined base at 10MOA allowing for better use of elevation with your scope.
Price includes FREE shipping to mainland UK addresses

Scope Mounts

New for 2018 are our rifle scope mounts. Made from a single bar of aluminium and precision machined for perfect alignment, these scope mounts have been engineered to precisely compliment our range of Picatinny rails.
Made in the UK using high grade aircraft aluminium, which is specially selected for its rigidity and resilience to ensure accuracy, each mount is anodised with a very high quality satin black finish.
Price includes FREE shipping to mainland UK addresses
Made in the UK using high grade aircraft aluminium, which is specially selected for its rigidity and resilience to ensure accuracy, each mount is anodised with a very high quality satin black finish.

Add to Cart

COMING SOON!

Gunsmith Services

Expertly executed

We recognise that owners often wish to maximise the accuracy of a factory rifle. At Barton Gunworks we offer a range of services to improve or alter your rifles handling or performance.

From re-threading or barrel shortening to fitting alternate bolt handles and rails and a host of other services. If it isn’t listed just ask us!

Barton Barrel Threading
If you have damaged the rifles crown accuracy will undoubtedly suffer. Occasionally, although somewhat rarely, a new rifle may have left the factory with an unsatisfactory crown, or perhaps you just want the assurance of a perfectly executed and hand-finished rifle crown. Either way, our service will put an 11º (or whichever angle you prefer), polished crown onto the end. We’ll give it the same care and attention as with our own rifles.t for both your rifle and your needs.

£65 excluding VAT

Just £25 excl. VAT when ordered as part of a barrel rethread

Enquire about this

Barton Barrel Threading
If you would like a barrel shortened, perhaps to lighten the overall package, to make a rifle more ‘pointable’ or easier to use when shooting from a vehicle then we can help. We’re able to shorten your barrel to any legal length. However, we would advise that you contact us using the form below because shortening a barrel has a direct effect on velocity and we can offer you advice on that.

£65 excluding VAT

Any thread including non standard and ‘spigot’ threads

Enquire about this

Barton Barrel Threading
If your factory rifle has arrived without a thread being cut and you would like to fit a moderator or muzzle brake there’s really only one option open. You need to have the barrel threaded. We can cut any pitch of thread for you and advise on what is best for both your rifle and your needs.

£65 excluding VAT

Enquire about this

Barton Barrel Threading

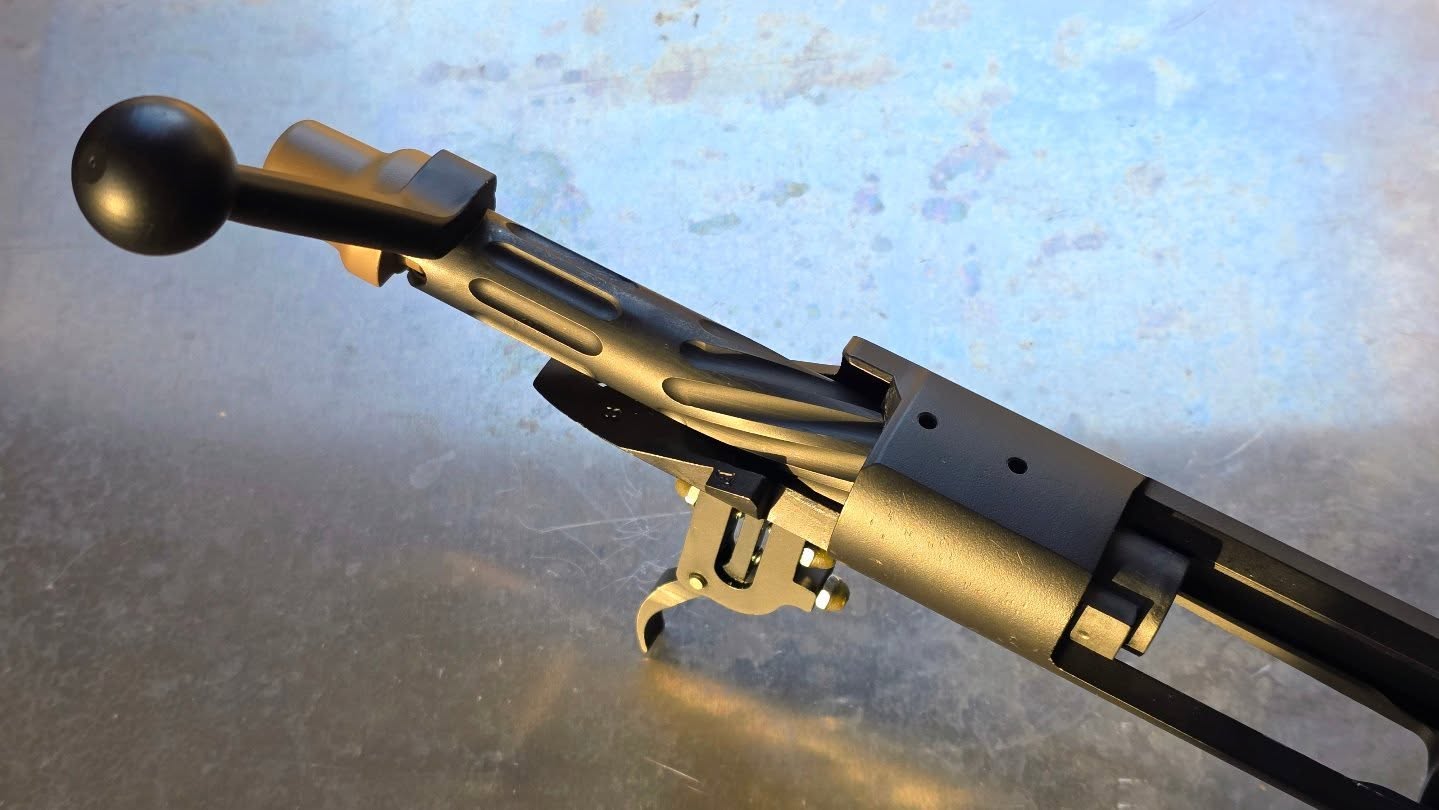

We offer several alternatives to the regular bolt handle on your factory rifle. Bolt handles are one of the main ways in which to tailor a rifle to suit your needs, perhaps you struggle to work a bolt with a gloved hand in winter after hours sat in a high seat? Or perhaps you just want to personalise your rifle to you – Barton Gunworks will ensure the result is seamless and perfectly matched to your need.
The price is variable dependent on your needs and requirements, please email for more information

Price on Application

Please contact us via email to discuss your needs

Enquire about this

Barton Barrel Threading
Invisible thread protectors are flush fitting to the barrel and mask the threaded muzzle. This can be very useful on open sighted rifles where the owner would like to maintain the front sight. We frequently thread Sauer rifles for instance with front sights and manufacturer an invisible thread protector in such a way that the rifle can either be used with a moderator and no front sight, or open sighted for moving targets or boar hunting. This is the perfect way to preserve the rifles aesthetics and still apply the threading you wish. Custom work such as the muzzle brake (pictured) we engineered for one of our clients is also offered.
The price is variable dependent on your needs and requirements, please email for more information

Price on Application

Please contact us via email to discuss your needs

Enquire about this

Barton Barrel Threading
We can modify your Remington 700 (or any 700 clone) to accept AI AW mags which benefit over AICS mags by being double stacked.
Modify to accept AI AW magazines (double stacked)
Please contact us via email to discuss your needs

Price on Application

Enquire about this
